SAFE-T-BLOCK™

U.S. PATENT #4,899,895 & 5,100,007 * CANADIAN PATENT #1,321,169 & 1,330,968

ALTERNATIVE SUPPORT on STRUCTURAL WALLS

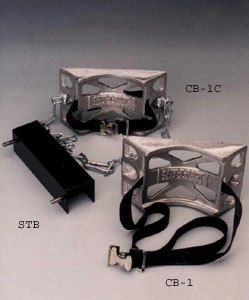

MODEL #CB-1 & CB-1C

  • Cast Aluminum Cylinder Wall Blocks.
  • Bolts to Concrete or Cinderblock Wall.
  • Both Models Equipped with 48" Polypropylene Strap and Nickel Cadmium Buckle.
  • Model #CB-1C Adds Secondary Chain and Hook Assembly to Satisfy the Most Rigid Code Requirements.

INSTALLATION SUGGESTIONS

  • Cylinders Under 30" Generally Safely Use (1) Cylinder Block, Placed At or About the Center.
  • Cylinders Taller Than 30" Should Use (2) Cylinder Blocks: 1 Placed at Approximately 15" Up from the Floor, 1 Placed 15-20" Above the Lower Block.
  • Seismic Areas Require (2) Cylinder Blocks - At Least (1) Must be with Chain. CB-1C (with chain)** Must be in Top Position.
Safe-T-Rack™ Systems, Inc. Will Always Recommend Model #CB-1C with the Additional Security Afforded by the Use of the Chain & Hook.



MODEL #STB- 'Adaptor Bracket'

  • Bracket Fits Over the Arm of Any 'Safe-T-Rack™' - Cylinder Block Bolts to the Bracket
  • When in Place, it Immediately Converts Your 'Safe-T-Rack™' to a Process Gas Rack.
  • Excellent for Areas Too Small for Additional Racks When Expanding Cylinder Pad.
  • Bracket is Powder Coated to Match the Racks (Black).



For a PDF version of this product page click here.
